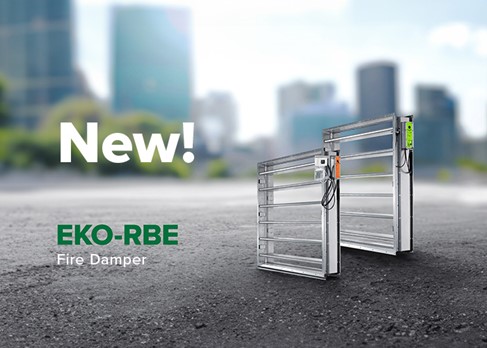

New! Fire Damper EKO-RBE

New! Fire Damper EKO-RBE

17 September 2024
EKO-RBE is a new CE-approved multi-blade damper in fire resistance class E120S for installation on horizontal and vertical ducts through wall/ceiling. EKO-RBE has a unique patent-pending design with the market's lowest weight and pressure drop, as well as a casing in tightness class C.

The damper is manufactured in sizes from 200x200 mm to 1200x1200 mm and can be supplied with guide or flange connections. The standard product is delivered in ZM120, but it is also available in ZM310 and stainless steel sheet according to EN 1.4016.

Quick facts about EKO-RBE:

  • New unique patent-pending design
  • Fire resistance class E30S/ E60S/ E90S/ E120S
  • For mounting on a horizontal and vertical duct through wall/ceiling.
  • Fitted with safety actuator, 24V or 230V
  • Available in versions with regulating actuator (RBE-R) and for constant pressure maintenance in ventilation ducts (RBE-C)
  • Easy installation
  • CE-marked according to 2531-CPR-CVC10003
  • The damper conforms to air tightness class 2 according to EN1751.
  • The casing conforms to air tightness class C (0-750 Pa) and B (750-2500 Pa) according to EN1751.
  • The differential pressure over a closed damper can be 2500 Pa, corresponding to pressure class B.
  • Accessories include connection spigot for circular duct EKO-ANS and extension spigot EKO-FLSN

Fire Damper EKO-RBE

Unique patent-pending design​ with the market's lowest weight and pressure drop, featuring a casing in tightness class C.
