EKO-BVGAXO, -BVGAXN, -BVGAXR - Discontinued
Fire smoke exhaust fan / JET fan
JET fan for smoke extraction compliant with EN 12.101-T3. Available in temperature classes F200 and F300
Product Information

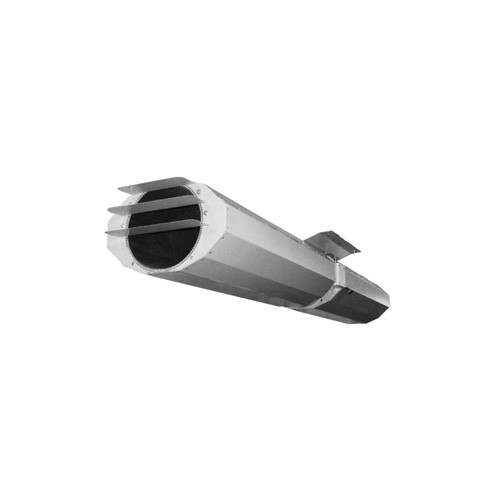

The EKO-BVGAXO, -BVGAXN, - BVGAXR smoke extraction fans are designed for installation within the fire zone and consist of a complete jet fan unit with accessories. The fan housing is constructed from welded steel sheet and is powder-coated as standard in RAL 7030. Oval-shaped sound dampeners are built into both sides of the fan. The fan comes in two sizes: 315 mm and 400 mm. Airflow speed ranges from 8-29 m/s.
The fan is available in several versions:
- EKO-BVGAXO comes without control.
- EKO-BVGAXN is equipped with post-control for increased pressure and disturbance-free airflow.
- EKO-BVGAXR has a reversible airflow direction.
