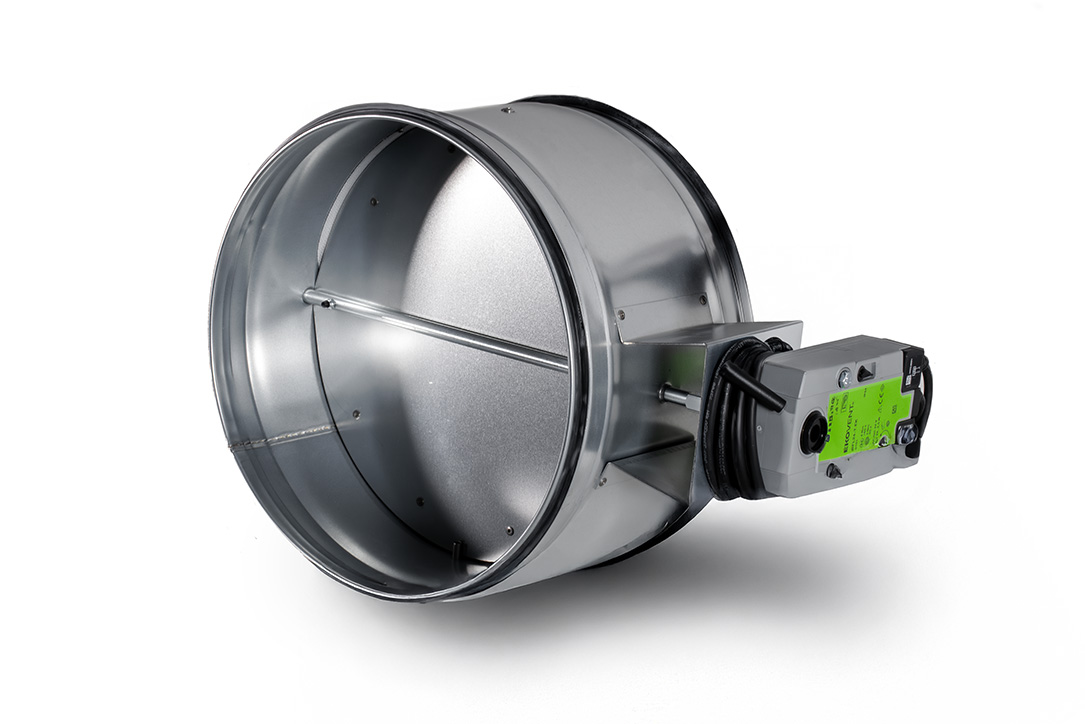

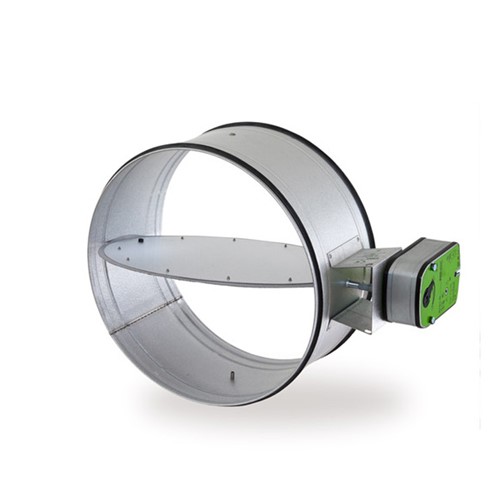

EKO-SRB1
Fire Damper E60 S
A damper for fire separation of heating, ventilation and air conditioning installations in buildings.
Product Information
EKO-SRB1 is a damper for fire separation of heating, ventilation and air conditioning installations in buildings. The damper is in accordance with European standard EN 15650:2010. In design with installation instructions and when the damper is used in combination with smoke detectors and EKO-Monitoringsystems, or like, the spread of combustion gases is prevented. No further acception against the spread of combustion gases is required.
The standard EKO-SRB1 is manufactured of galvanized sheet steel (C2) with damper blades and casing of fire resistant material. Alternatively, the damper can be made of Zinc Magnesium ZM120 (C4), Zinc Magnesium ZM310 (C5) or stainless steel EN 1.4404.
Features
- Fire resistance class E60S
- Sizes from Ø100 to Ø630 mm
- Installation in ducts
- Prefitted safety actuator 24V or 230V
- CE-marked building product according to SS-EN 15650:2010
- Available in MagiCAD
