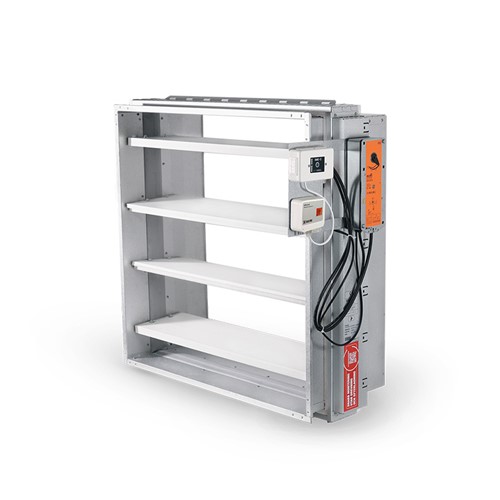

EKO-RBG1-C
Fire Damper and Constant Pressure Control EI 60/EI 60 S
A multi-blade damper intended for fire sectioning or as protection against the spread of fire in ventilation systems.
Product Information
EKO-RBG1-C is a multi-blade damper in fire resistance class EI60S which can also be used for constant pressure control in ventilation system. The damper is equipped with factory-fitted electrical actuator with spring return, end position contacts and thermal sensor. Control and monitoring with EKO-MME / SME1-C system or equivalent. EKO-RBG1-C is delivered with a pre-programmed damper module for keeping the pressure constant. Nominal pressure is 100 Pa, 250 Pa or 500 Pa depending on the measuring range of the pressure sensor.
Fire damper EKO-RBG1-C is manufactured in sizes from 200x200 mm to 1200x1000 mm.
Features
- Fire resistance class EI60/EI60 S
- Mounting without wall to damper caulking
- For mounting against a wall/floor or on a horizontal duct
- Multi-blade damper with low weight
- The multi-blade damper provides low pressure drops and sound power levels
- Sizes from 200x200 mm to 800x800 mm and RGB1-2 from 200x200 mm to 1200x1000 mm.
- Prefitted safety actuator 24V or 230V
- Easy installation
- Thanks to the multi-blade system, the damper is very suitable to use with regulating actuators.
- CE-marked building product according to 0402-CPR-C500091
- Available in MagiCAD
