EKO-RBG1-R
Regulating fire damper EI 60/EI 60 S
A multi-blade damper intended for fire sectioning or as protection against the spread of fire in ventilation systems.
Product Information

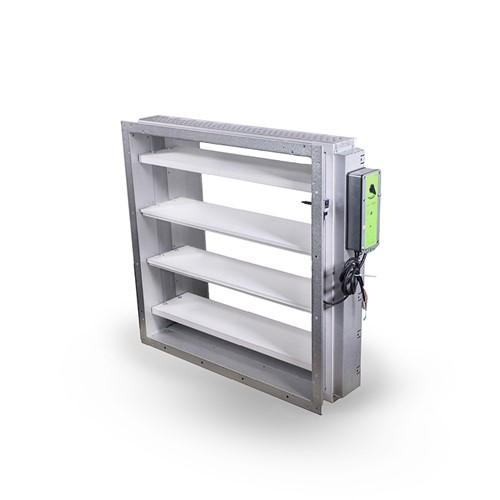

Fire damper EKO-RBG1-R is a P and CE approved multi-blade damper intended for fire sectioning or as protection against the spread of fire in ventilation systems. The damper is equipped with factory-fitted electrical actuator with spring return, end position contacts and thermal sensor.
EKO-RBG1-R is available in two versions;
• EKO-RBG1-R-1 for mounting against wall/floor
• EKO-RBG1-R-2 for mounting on a horizontal duct.
EKO-RBG1-R-1 is manufactured in a wide range of standars sizes from 200x200 mm to 800x800 mm. EKO-RBG1-R-2 is produced in standard sizes 200x200 mm to 1200-1000 mm.
The standard EKO-RBG1-R is manufactured of galvanized sheet steel (C2) with damper blades and casing of fire resistant material. Alternatively, the damper can be made of Zinc Magnesium ZM120 (C4) Zinc Magnesium ZM310 (C5) or stainless steel EN 1.4404.
Features
- Fire resistance class EI60 / EI60 S
- Mounting without wall to damper caulking
- Multi-blade damper with low weight
- The multi-blade damper provides low pressure drops and sound power levels
- Sizes from 200x200 mm to 800x800 mm and RBG1-2 from 200x200 mm to 1200x1000 mm.
- Prefitted safety actuator 24V
- Easy installation
- Thanks to the multi-blade system, the damper is very suitable to use with regulating actuators.
- CE-marked building product according to 0402-CPR-C500091
- P-approved according to C900166
- Available in MagiCAD
