EKO-SRBG1
Fire Damper EI 60/EI 60 S
Designed for fire compartmentation or to prevent the spread of fire and smoke in ventilation systems.
Product Information

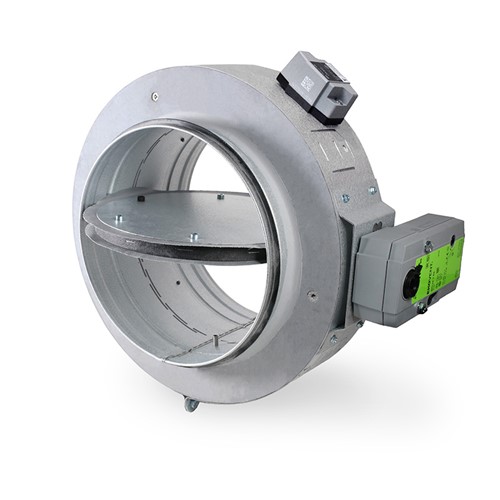

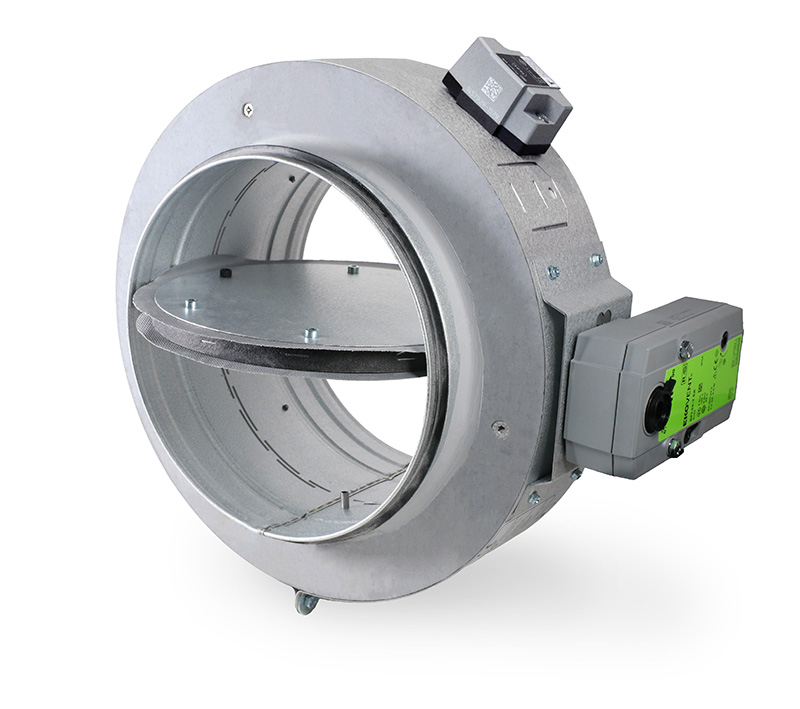

The EKO-SRBG1 is a fire damper with fire resistance EI 60/ EI 60 S. The damper has a factory-mounted electrical actuator with spring return, end position contacts and thermal sensor.
Control and monitoring system is done with EKO-MKE/SKE, EKO-KE, EKO-TME/TSE, EKO-MME/SME, EKO-PRO M/S system or equivalent.
The standard EKO-SRBG1 is manufactured of galvanized sheet steel (C2) with damper blades and casing of fire resistant material. Alternatively, the damper can be made of Zinc Magnesium ZM120 (C4), Zinc Magnesium ZM310 (C5) or stainless steel for a higher corrosivity class.
Features
- Fire resistance EI 60/EI 60 S
- Mounted actuator 24V or 230V
- Sizes from Ø100 to Ø630 mm
- Mounting without wall to damper caulking
- CE-marked
- P-approved
- Available in MagiCAD
