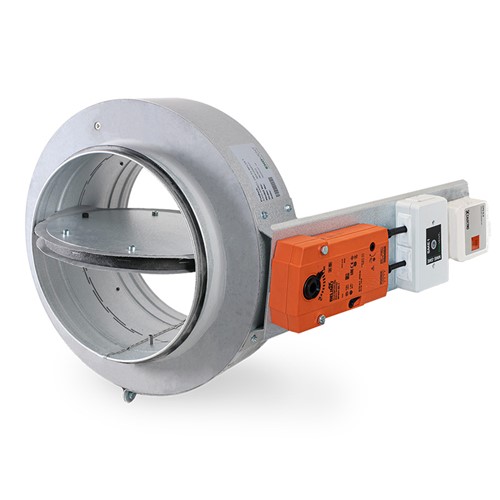

EKO-SRBG2-C
Fire Damper EI 60/EI 120 S
A fire damper that can also be used for maintaining constant pressure in ventilation systems.
Product Information
EKO-SRBG2-C is a fire damper in fire class EI 120/EI 120 S that can also be used to maintain constant pressure in ventilation systems. The damper is equipped with a factory-fitted electric actuator with spring return, limit switches and thermal sensor.
Control and monitoring takes place with the EKO-MME/SME1-C system or equivalent.
EKO-SRBG2-C is delivered with a pre-programmed damper module for keeping the pressure constant. Nominal pressure is 100 Pa, 250 Pa or 500 Pa, depending on the measuring range of the pressure sensor.
EKO-SRBG2-C is delivered as standard in galvanized sheet steel (C2) with damper blade and casing made of fire-resistant material. Alternatively, the damper can be made of Zinc Magnesium ZM120 (C4), Zinc Magnesium ZM310 (C5) or stainless steel.
