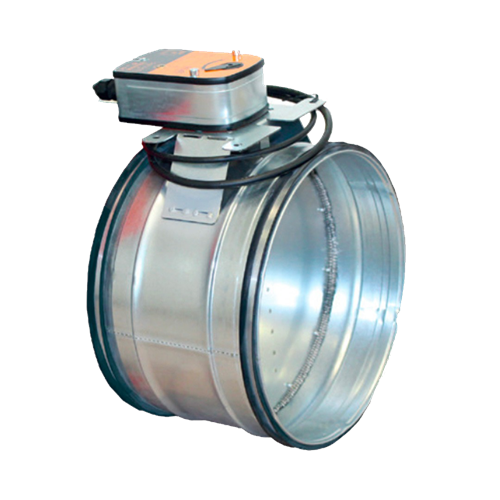

EKO-WXHU-AA
Smoke Control Damper
Circular smoke control damper for smoke and heat evacuation systems for single compartment.
Product Information
EKO-WXHU is a smoke control damper classified as E600 120S 1500 AA Single, featuring a circular connection Ø100–630 mm for duct installation. The E600 S classification provides fire resistance and facilitates smoke extraction for a single fire compartment for 120 minutes at temperatures up to 600°C, with smoke leakage class S at 1500 Pa negative pressure, and without thermal insulation integrity.
EKO-WXHU is supplied with a factory-mounted 24V or 230V electric safety actuator. The damper casing is made of galvanized steel, equipped with an EPDM connection, and complies with leakage class C according to EN 1751.
Features
- CE-marked smoke control damper in accordance with EN 12101-8
- Tested according to EN 1366-10
- Classified according to EN 13501-4
- Smoke control damper with fire classification E600 120S 1500 AA Single, intended for duct installation.
- Available in sizes as specified in the table.
